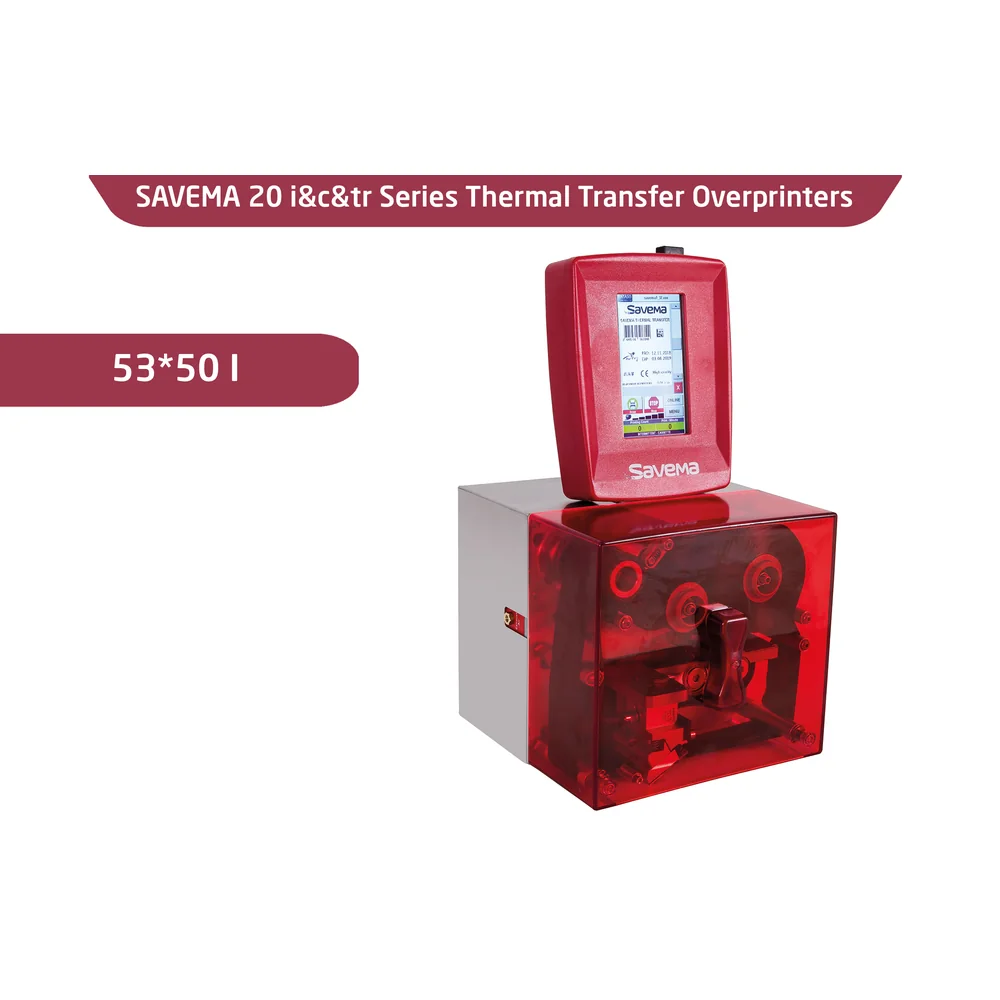

SVM 53-50 I
Intermittent thermal transfer printing with a wider print area
The SVM 53-50 I thermal transfer overprinter is designed for packaging material that stops briefly during each machine cycle. Its 53 mm print width provides more space for product information, barcodes and traceability data than compact 32 mm systems.
It is suited to manufacturers that need clear, repeatable coding on flexible packaging and labels without adding a separate label or printing process.
Intermittent operation
The printhead moves across stationary packaging material during the machine dwell period, making it suitable for intermittent form-fill-seal and labelling equipment.
Wider coding area
A 53 mm x 50 mm print area accommodates dates, batch details, product information, logos and multiple barcode formats.
High quality output
300 dpi resolution supports sharp text, graphics, 1D barcodes, 2D Data Matrix codes and GS1 barcodes.
Production ready control
The colour touch panel, stored templates and standard communication ports make regular product changes straightforward for operators.
Technical specifications
- Intermittent thermal transfer printing
- 53 mm x 50 mm maximum print area
- Operating speed from 50 to 400 mm/s
- 300 dpi print resolution and ribbon capacity up to 600 metres
- 4.3-inch colour touch panel with storage for up to 5,000 templates
- RS-232, Ethernet and USB connectivity
Common applications
- Expiry dates, batch numbers and ingredient information
- Variable data on food, pharmaceutical and cosmetic packaging
- Logos, counters and product identification
- 1D, 2D and GS1 barcode printing
Plan an intermittent coding installation
For the SVM 53-50 I, compare the required message area with the available print window and machine dwell time. Send the packaging material, code layout and normal cycle information so Seagle can assess ribbon selection, mounting space and machine signals.
Does a 53 mm width mean every layout will fit?
Check both dimensions of the complete message against the stated print area. Include the barcode dimensions and any graphics.
What if my material never stops?
Compare a continuous thermal transfer model rather than selecting an intermittent printer only by print width. Explain the material movement in your enquiry.
Compare equipment and get application advice
Explore our thermal transfer printers or compare SVM 53-70 I & SVM 53 C Thermal Transfer Overprinters and SVM 32-50 I & SVM 32 C Thermal Transfer Overprinters.
For installation and ongoing assistance, view our equipment services. Discuss this application with Seagle Coding.
