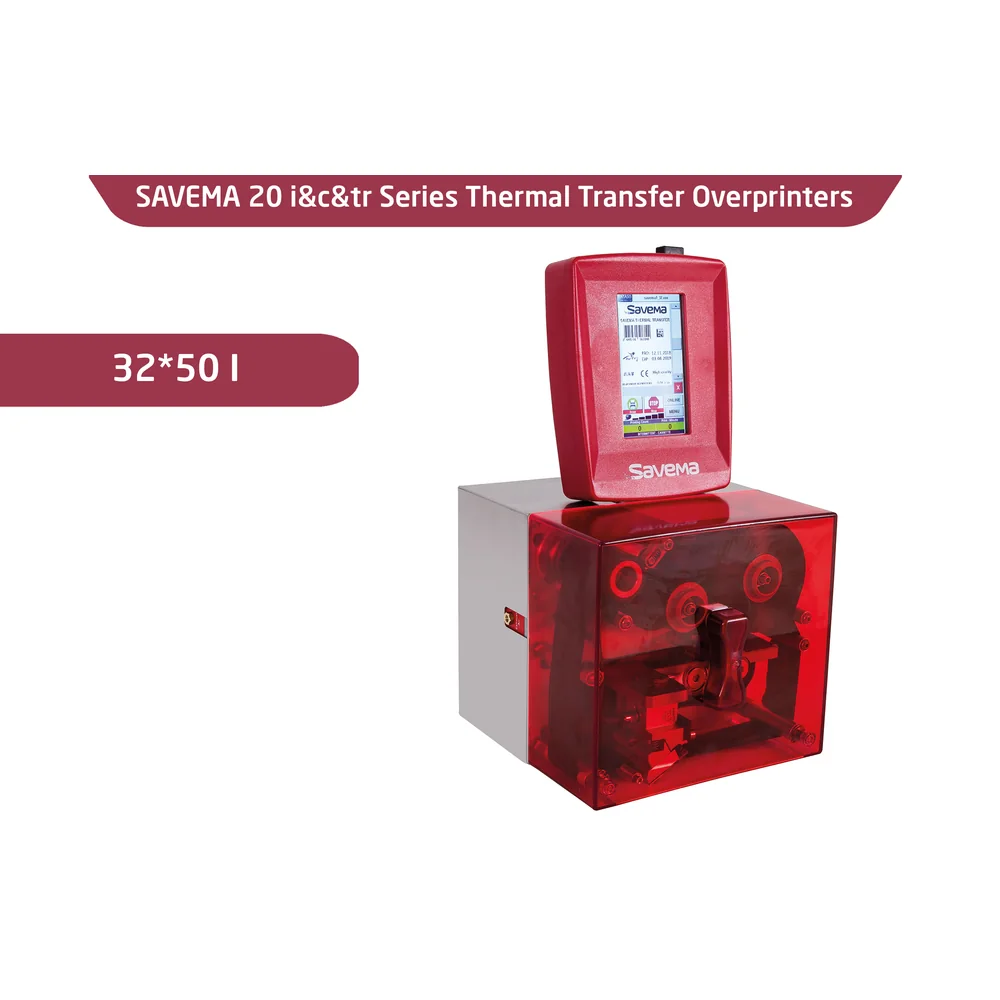

SVM 32-50 I and SVM 32 C
Thermal transfer coding on flexible packaging and labels
The SVM 32-50 I and SVM 32 C thermal transfer overprinters print fixed and variable text, data and graphics on flexible packaging films and labels. The SVM 32-50 I prints when the packaging material pauses, while the SVM 32 C prints as the material moves continuously.
Applications include date, batch, barcode and traceability coding for food, pharmaceutical, cosmetic and industrial products. The appropriate model depends on how the packaging machine moves the material and the print area required.
Which model suits your packaging machine?
Choose the SVM 32-50 I for intermittent operation, where the film or label pauses during each printing cycle. Choose the SVM 32 C for continuous operation, where the material keeps moving.
What can these printers print?
Print dates, batch numbers, prices, product information, logos, counters, 1D barcodes, 2D Data Matrix codes and GS1 barcodes.
Compact integration
The small printhead format is suitable for integration with form-fill-seal machinery, primary labellers, thermoformers and overwrapping equipment.
Simple operation
Operators use the colour touch panel and stored templates to select and change print messages. RS-232, Ethernet and USB connections support communication with other equipment.
Technical specifications
- SVM 32-50 I: intermittent printing with a 32 mm x 50 mm print area and operating speed from 50 to 400 mm/s
- SVM 32 C: continuous printing with a 32 mm x 125 mm print area and operating speed from 10 to 550 mm/s
- 300 dpi print resolution and ribbon capacity up to 600 metres
- 4.3-inch colour touch panel with storage for up to 5,000 templates
- RS-232, Ethernet and USB connectivity
Common applications
- Expiry dates, batch numbers and sell-by information
- Variable product data and barcodes on flexible packaging
- Traceability coding for food, pharmaceutical and cosmetic products
- Logos, counters and logistics information
Match the SVM 32 operating mode
Compare the SVM 32-50 I for intermittent movement with the SVM 32 C for continuously moving packaging. Supply the complete message layout and the packaging-machine cycle or web speed. Seagle can then assess the print window, ribbon and integration requirements.
What if my code needs more width?
Compare the complete layout with the stated 32 mm width. If it does not fit, ask Seagle to assess a wider SVM 53 or SVM 107 option.
What material should I provide for assessment?
Send the actual film or label, the intended print position and required code durability, together with the message dimensions.
Compare equipment and get application advice
Explore our thermal transfer printers or compare SVM 53-70 I & SVM 53 C Thermal Transfer Overprinters and SVM 107-75 I, 107-125 I & 107 C Thermal Transfer Overprinters.
For installation and ongoing assistance, view our equipment services. Discuss this application with Seagle Coding.
