RED TIJ printers in South Africa

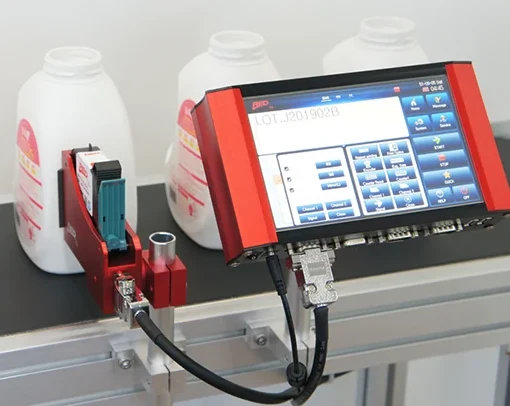

RED TIJ and TIJ PLUS thermal inkjet printers are supplied by Seagle Coding in South Africa for product and packaging identification. The range combines a compact controller, a 7-inch colour touchscreen and single- or dual-head configurations for half-inch and one-inch printing.
Print text, batch codes, dates, counters, logos and machine-readable codes. Share your substrate, required print height, line speed and code content with our team so that the printhead, cartridge and installation can be selected for your application.
Choose your RED TIJ configuration
| Model | Printhead configuration | Cartridge / print height |
|---|---|---|
| TIJ.1 | Single head | 1/2 inch (12.7 mm) |
| TIJ.1 PLUS | Single head | 1 inch (25.4 mm) |
| TIJ.2 | Dual heads | 1/2 inch per head |
| TIJ.2 PLUS | Dual heads | 1 inch per head |
Key features
- 7-inch colour LCD touchscreen with a multilingual graphic interface.
- 300 dpi and 600 dpi print resolution options.
- Text, images, automatic date/time, counters, shift codes, batch codes and random codes.
- QR codes, DataMatrix and linear barcode formats, including Code 128 and EAN-13.
- USB backup and recovery, with photo sensor, warning light, BCD, RS232 and encoder interfaces.
- Automatic configuration of ink type and remaining ink.
RED TIJ technical specifications
| Manufacturer-stated print speed | Up to 60 m/min in normal mode; up to 110 m/min in speed mode. |
|---|---|
| Power supply | AC 100-240 V, 50-60 Hz, 90 W, dedicated AC adaptor. |
| Controller size and weight | 203 x 113 x 42 mm; 924 g. |
| Printhead size | 129 x 107 x 30 mm with a 1/2-inch cartridge. A 1-inch cartridge increases the height slightly. |
| Printhead weight | 386 g without cartridge; 482 g with a 1/2-inch cartridge; 508 g with a 1-inch cartridge. |
| Operating environment | 5-35 °C; 10-85% RH. |
| Cartridge options | HP TIJ 2.5 original 1/2-inch cartridges and 1-inch cartridges, depending on configuration. |
| Ink options | 1/2 inch: solvent, water, pigment, UV invisible and UV curable inks, with black, red, blue, white and yellow options. 1 inch: solvent or water-based black ink. |
Specifications are from the manufacturer brochure. Achievable speed and print quality depend on the selected resolution, ink, code content, substrate and installation. Confirm ink compatibility and the required configuration with Seagle before ordering.
Installation options
Optional brackets include dual-head, tension, XY adjustment, head cover and wave utility brackets. Bracket selection depends on mounting space, product presentation and the required printhead position.
Download the RED TIJ brochure
Download RED TIJ / TIJ PLUS brochure (PDF, 5.5 MB)
Questions about RED TIJ printers
Which print height do I need?
Choose around the height of your complete code, including text, graphics and barcodes. TIJ.1 and TIJ.2 use half-inch cartridges; the PLUS configurations use one-inch cartridges. For dual-head installations, discuss the position of each printhead and the required code layout with Seagle.
Can the printer produce QR codes and barcodes?
Yes. The manufacturer lists QR codes, DataMatrix and linear barcode formats, including Code 128 and EAN-13. Supply your required data format and a sample of the product or packaging so that the intended code size and print quality can be assessed.
What information should I send for a quotation?
Include the product material, print content, required code height, conveyor speed and available mounting space. Tell us whether you need one or two printheads and whether the application uses cartons, labels, containers or another surface.
Compare coding systems
Browse our thermal inkjet (TIJ) printers or compare continuous inkjet coding systems. For installation and ongoing technical assistance, see our industrial equipment services.
Manufacturer information is available from Intermac, the manufacturer of RED coding systems.
Find the right printer for your application
Tell us what you need to print, the surface being coded, your line speed and the available installation space. Seagle can help you select a suitable RED TIJ configuration.
